Description: Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won’t polluted environment. Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.
Feed Water for this ro system:
Spring water, Tap water, Well /borehole water, Slightly brackish water, Underground water, River water
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
| Feed Temperature | 5 - 39℃ |
| Feed water TDS | less than 2000ppm |
| Feed pH | 3-11 |
| Feed water pressure | 0.1-0.3 Mpa |
| Operation Pressure | 4.5-6.0 Mpa |
| Electric Parameters | 220v / 380v / AC, 50hz / 60hz, single phase / 3 phase |
| Tonnage Electricity Consumption | 3.5-7.5 Kw.h / ton |
| System recovery rate | Nearly 50% when operation pressure is near 53 bar. |
| Design output | 1 m3/hr to any size as requested |
| Produced water quality | Portable Mineral drinking water |
What can we made for?
We can custom design for your application and water quality requirement,In past 12 years, Molecular have get rich exprienced in different application, mainly includes following
1. Economic ro system
suitable for some common applciation require pure water, like boiler feed water, chemical industry process water, process cleanning water,ect
2. Drinking, Pure, Mineral water ro system
meet GB FDA drinking or bottled water standard, whole SS304 with UV and ozone generator disinfection
3. RO+EDI ultrapure water system for electronic industry,speciaty metierals
this kind ultrapure water widley used in process, cleanning for LED,LCD,PDP,PCB,IC
4. RO+EDI+pasteurization system for pharmacuetical/injection
Meet GMP, USP standard, we have customized above 100 pharma factory of water purification system, all design is strict based on national pharma pure water design requirement.
System is with complete monitering system, on-line display, disinfection and anti-bacterial.
5. Medical grade water system for dialysis,supply room
strong at water purification system for dialysis machine in hospital, get II type medical mechinery certification

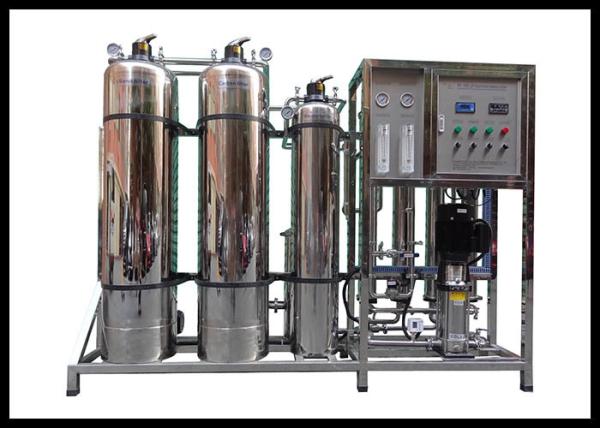

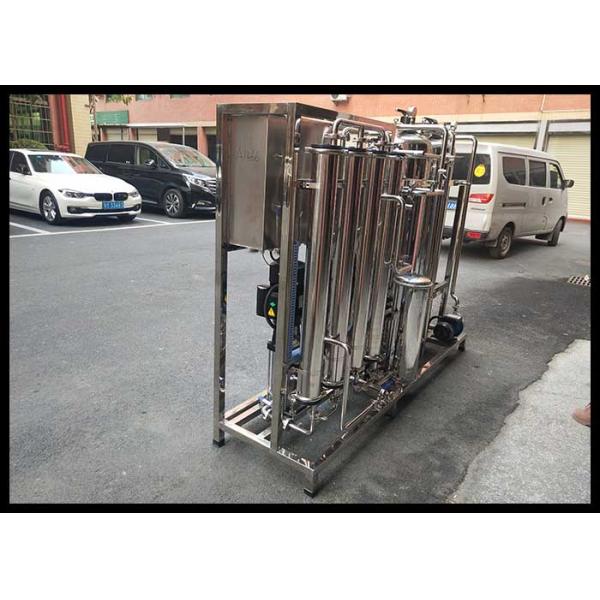

Following photos is some pictures we custom made for our customers, just for reference
6.Other
Also strong at water softener system for boiler, containerized mobiler water system, Boron ,As removing sysem
.....
Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + mineralized ball filter + security filter + high pressure pump + ro system + UV sterilizer(ozone generator) +pure water tank + water supply point
Kaiyuan do our best to meet your water demand solution!!. ^^
