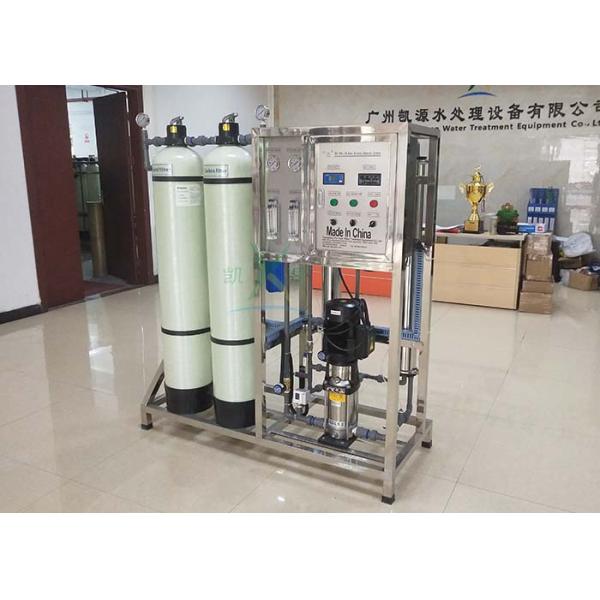

Small RO Water Treatment System Reverse Osmosis Filtration Plant

Name: Small RO Water Treatment System Reverse Osmosis Filtration Plant
Brand: Kaiyuan
Price: 1 USD

Wholesale Small RO Water Treatment System Reverse Osmosis Filtration Plant from china suppliers

Brand Name : Kaiyuan

Model Number : KYRO-500LPH

Certification : ISO9001, CE, SGS

Place of Origin : Guangzhou, China

MOQ : >= 1sets

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : >300sets/month

Delivery Time : 1-7working days(depand on raw materials stocking)

Packaging Details : export standard wooden case(plywood), no need to fumigate, suitable for shipping.

Item Name : 500L/H Water Treatment System

Production Capacity : 500Liters per hour

Recovery Rate : 50% - 75%

Electrical Power : 380V/220V 50Hz/60Hz

Tank Material : FRP / Stainless Steel / Carbon Steel

Control Valve : Automatic / Manual

Pipe fitting : SUS304 / SUS316L / U-PVC

Operating temperature : 5℃ - 39℃

Contact Now

Small Design 500L/H Water Treatment System Reverse Osmosis Filtration Plant

1. Product Description / RO Water Treatment System

Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane.
It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt.

The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment.

The second stage reverse osmosis system use the first stage reverse osmosis system output water as raw water to make water to be more pure. Normally output water conductivity<2 us/cm.

2. Product Details / RO Water Treatment System

kyro-500lph RO Water Purifier Machine:

1. Capacity: 500L/H

2. Rated power: 1.5KW/H

3. RO System Rack Size: 1650*630*1800mm

4. Desalting rate:>=97%

5. Water recovery rate: 50-75%

6. TDS of raw water: ≤ 2000PPM

7. TDS of pure water: ≤ 60PPM

8. Voltage: 110V / 220V / 380V, 50Hz / 60Hz, single phase / 3phase

3. Component / RO Water Treatment System

There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. Ro membrane: replaced about every 2 year.
We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.

4. Optional Components / RO Water Treatment System

A. Regulating wheels
B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank

5. Product Processing / RO Water Treatment System

Some parts function:

1.Raw water pump: provide needed pressure for every pre-treatment filter;
2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7.Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...

Small RO Water Treatment System Reverse Osmosis Filtration Plant

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
