EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis

Name: EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis
Brand: Kaiyuan
Price: 1 USD

Wholesale EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis from china suppliers

Brand Name : Kaiyuan

Model Number : KYRO-500LPH

Certification : ISO9001, CE, SGS

Place of Origin : Guangzhou, China

MOQ : >= 1sets

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : >300sets/month

Delivery Time : 1-7working days (depand on raw materials stocking)

Packaging Details : export standard wooden case(plywood), no need to fumigate, suitable for shipping.

Name : EDI Electric Desalination For Hemodialysis

Application : Hemodialysis /Cosmetic /Semiconductor /Painting

Production Capacity : 500LPH

Recovery Rate : 50%-75%

Desalination Rate : >=97%

Pipe fitting : SUS304/ U-PVC

Pretreatment Valve : Automatic control valve

Electrical Power : 110V/220/380V 50/60Hz

Function : Water Purifier / Water Treatment

Tank Material : FRP/ Stainless steel/ Carbon Steel

Contact Now

Double Stage Ro System and EDI Electric Desalination 500LPH For Hemodialysis

Advantages of EDI Technology

1.Best stability of water quality

2.Constantly produce ultrapure water as per user requirements

3.Modular production, can achieve automatic control

4.No need acid and alkali regeneration, no pollution emissions

5.No need stop because of regeneration

6.No need regeneration equipment and chemical storage

7.Compact equipment, small size

8.Low operation and maintenance cost

9.Simple operation and low labor strength

EDI system

EDI, also known as electric desalination. It is a new ultra pure water technology which gradually developed in the 20^th century. EDI equipment combined electro dialysis technology and ion exchange technology. It is using the selectivity penetrate function of anion and cation membrane and exchange function of ion exchange resin, under direct current electric field to make ion directed migration. Finally to make deep desalination of water. In the same time, hydrogen ion and hydroxide ion which produced when water ionize will regenerate ion exchange resin. So if use EDI equipment, no need acid and alkali chemical to do any regeneration, and it can produce ultra pure water continuously.

Application

a. Medical production,industrial pharmacy use

b. Cosmetics, Hemodialysis

c. Recycling water system

d. Chemical, electroplate industrial etc

e. Microelectronic, power, and biological project

f. Chemical Lab,semiconductor

g. Other electronic standard water

Process

Raw water tank(user supply) → raw water pump → sand filter → carbon filter → softener filter → security(micro) filter → high pressure pump 1^st → reverse osmosis system 1^st →high pressure pump-2^nd reverse osmosis system 2^nd→UV lamp→EDI system→ pure water tank(user supply) - outlet

Main parts function

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/softener.
2. Multi-medium filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, smell, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

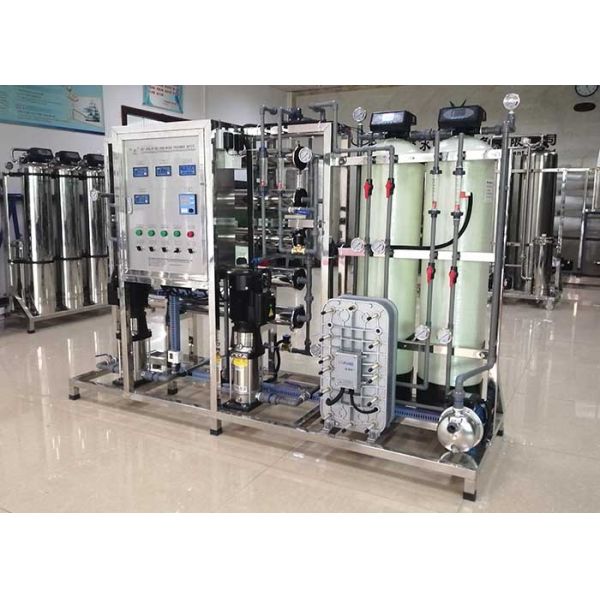

EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis

Electric control box

EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !

We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110

Guidelines for getting a proper quotation

Tell us the raw water/source of water

Provide water analysis report

Required production capacity( 500 liters per hour, 1000liters per hour…)

What's the pure water used for( drinking, bottle water or industrial use…)
